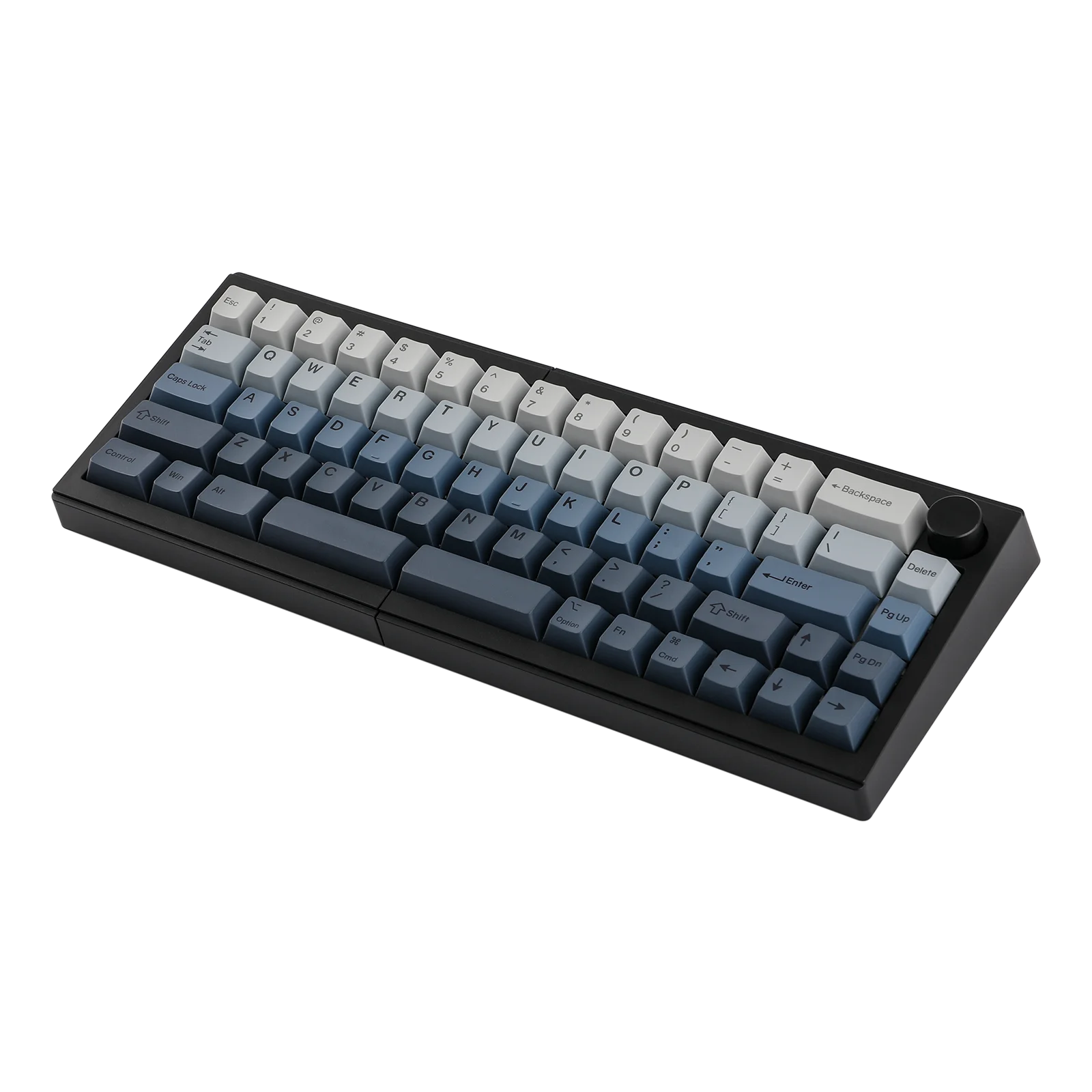

EPOMAKER Split65 60% Layout TOP Structure Hot-Swap Wired/2.4GHz/Bluetooth 5.0 Wireless Mechanical Keyboard South-facing RGB

Description

EPOMAKER Split65 60% Layout TOP Structure Hot-Swap Wired/2.4GHz/Bluetooth 5.0 Wireless Mechanical Keyboard South-facing RGB

The Epomaker Split65’s ergonomic, split design offers unmatched comfort, reducing wrist strain during long typing or gaming sessions. Its adjustable angles ensure a natural, personalized typing experience.

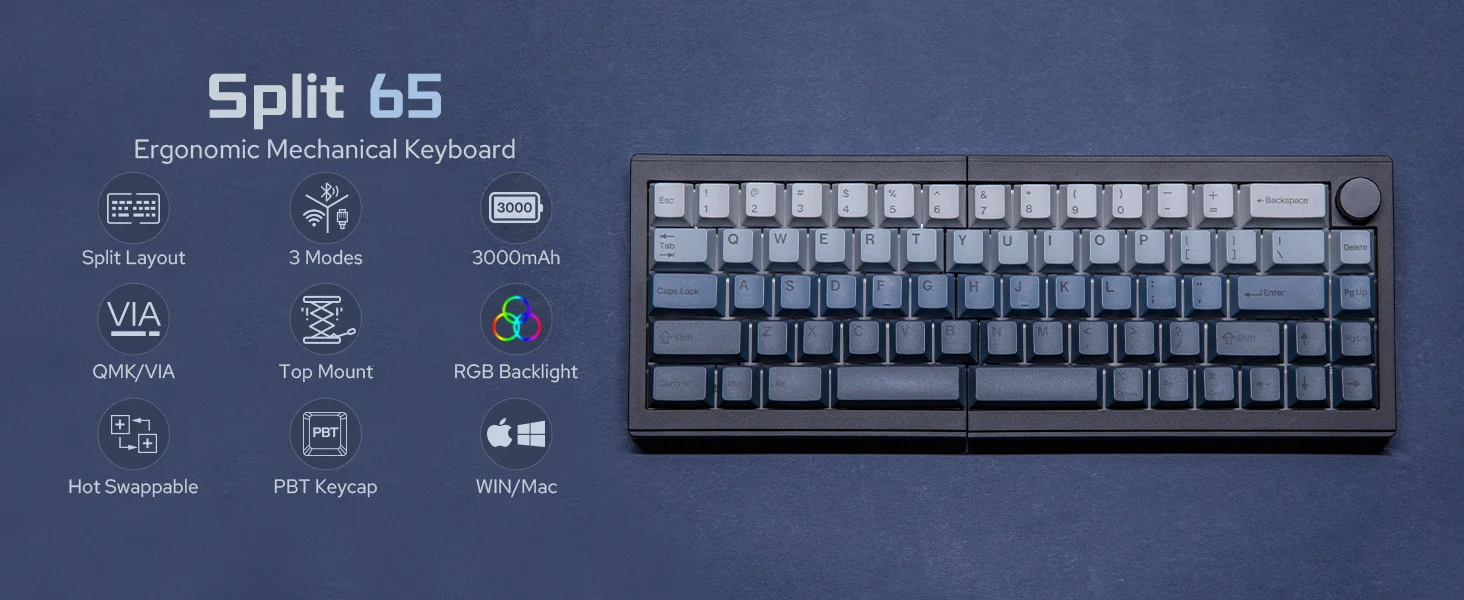

-Triple Modes Connectivity

-NKRO & South-facing RGB Backlight

-Top-Mount & Full – Key Hotswappable

-VIA Programmable

-4 Layers of Sound Dampening Material

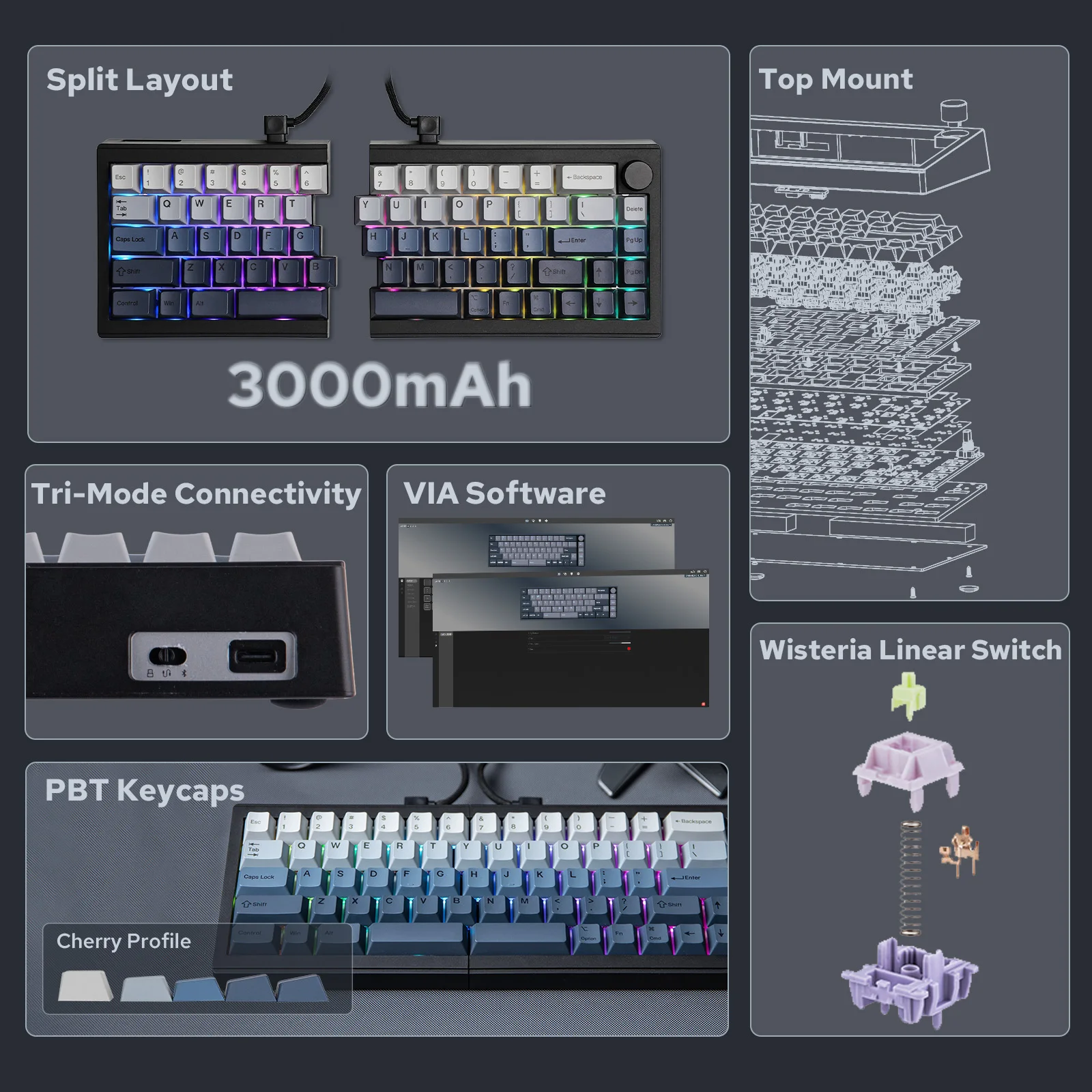

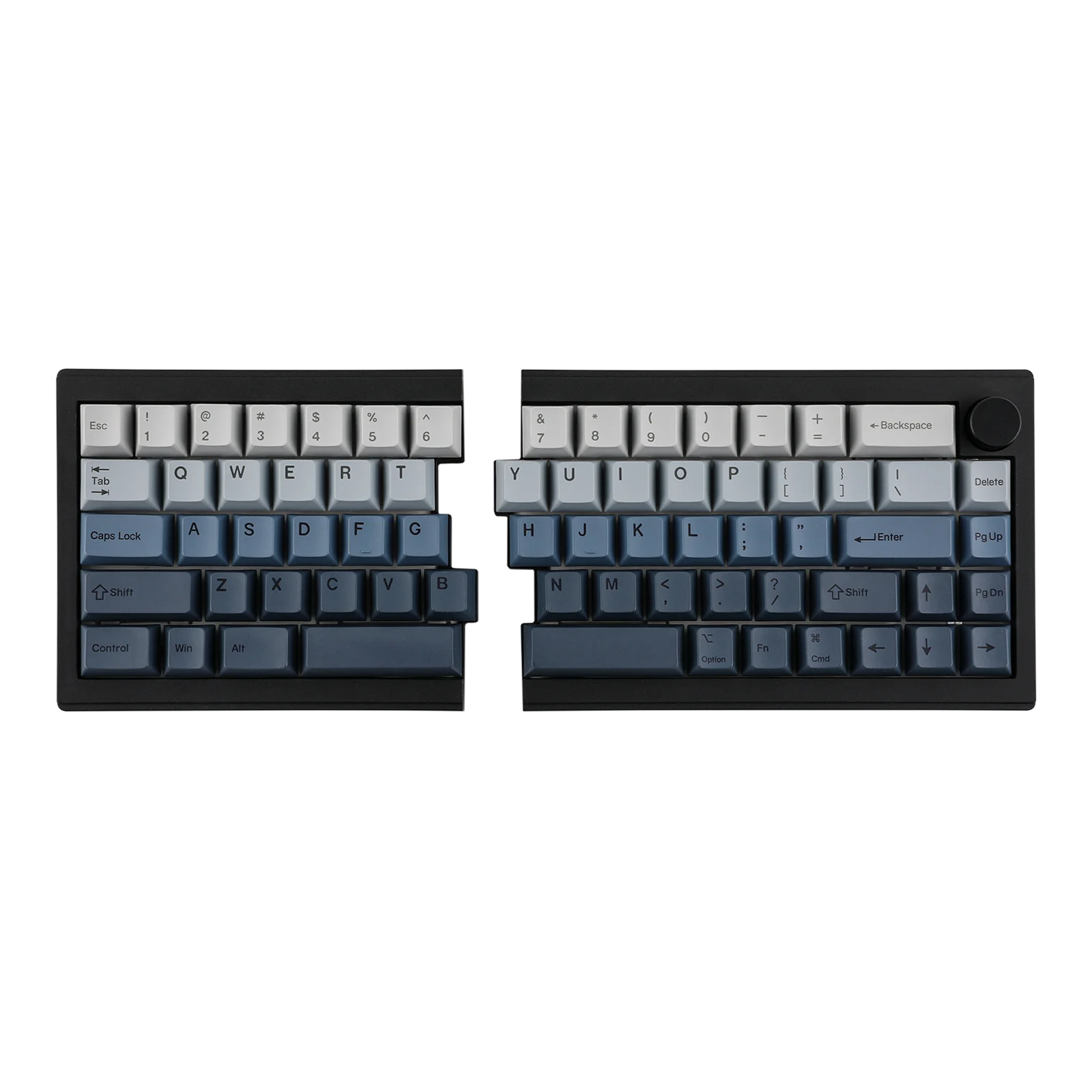

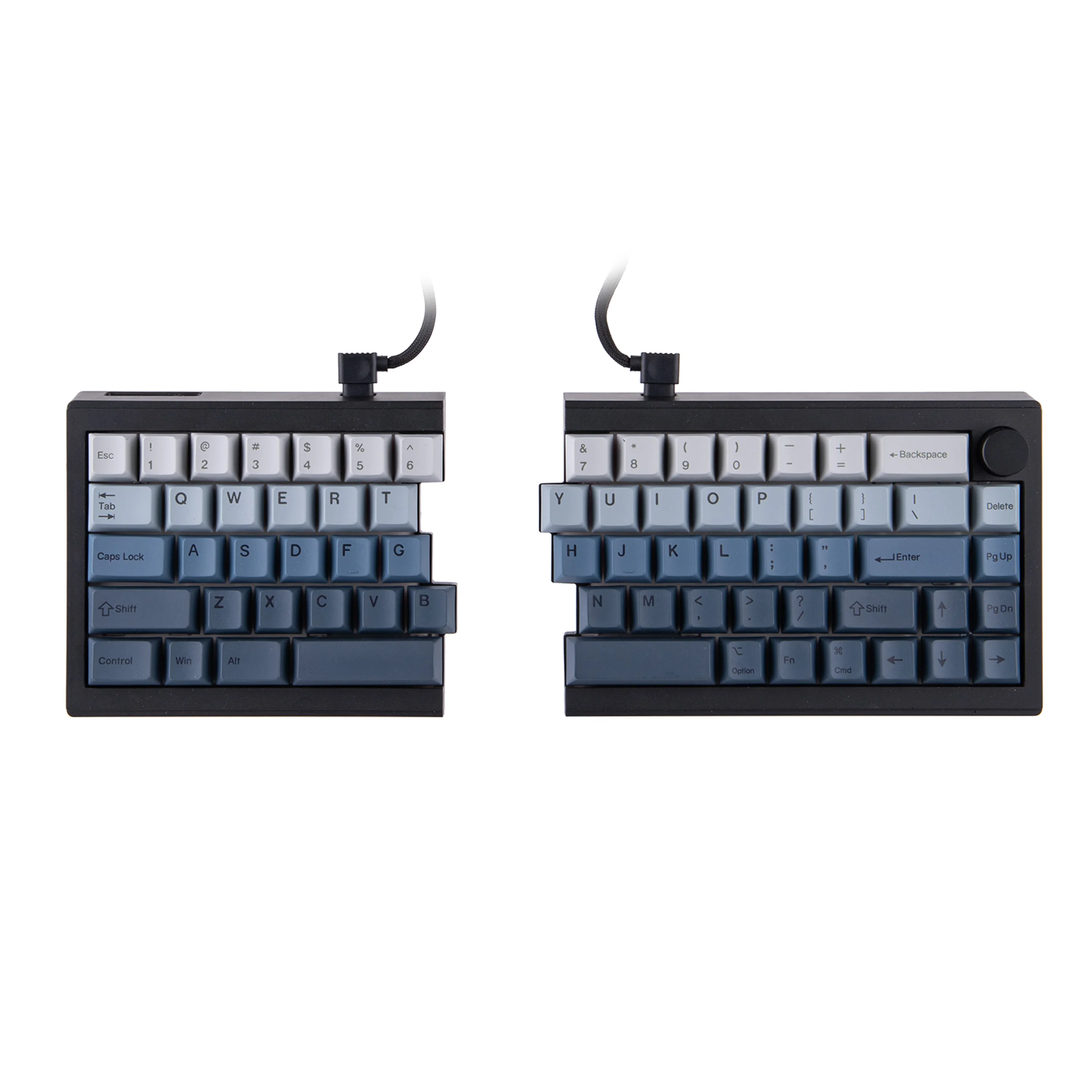

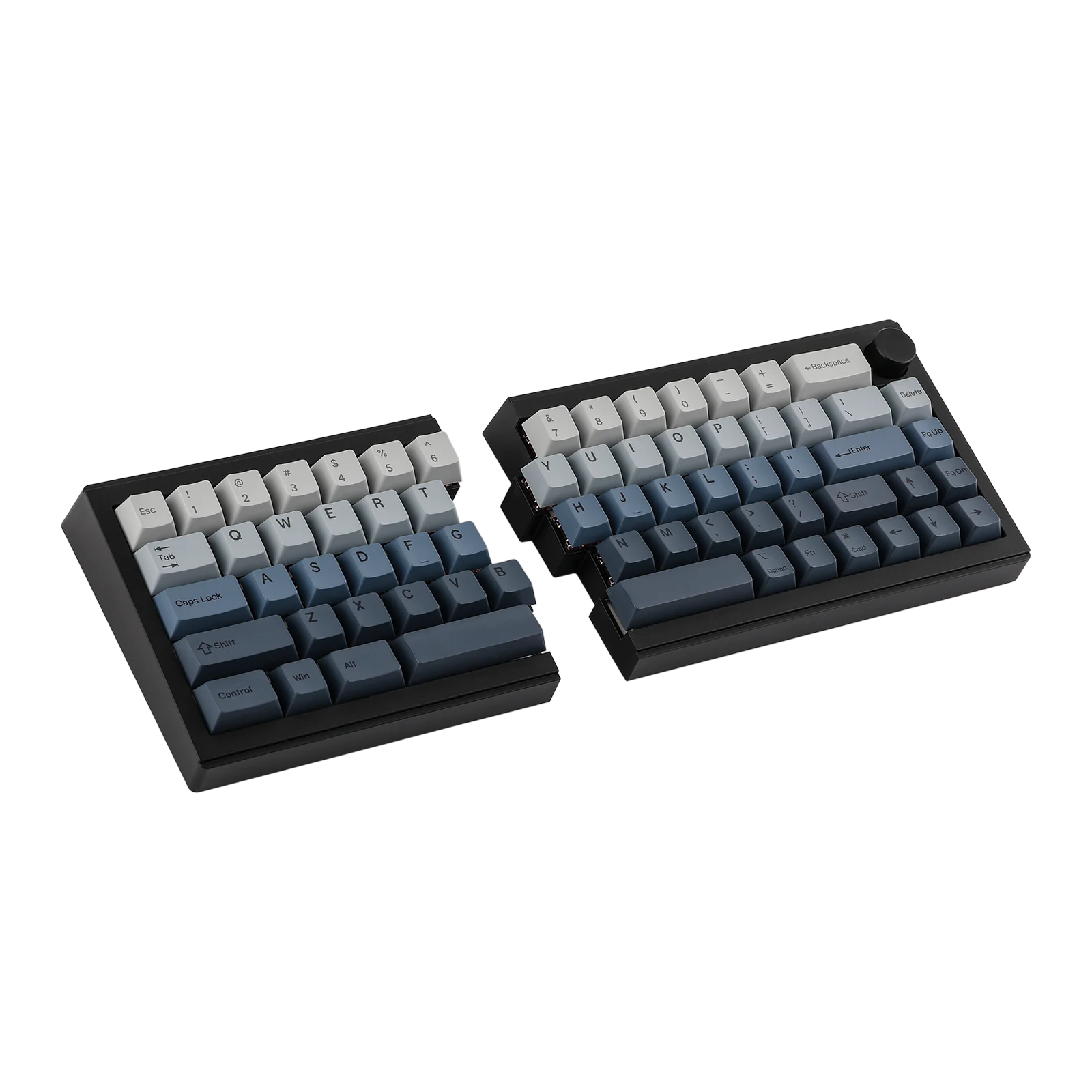

Ergonomic and Split Design

The Epomaker Split65 features an ergonomic, split design that enables users to adjust the keyboard’s halves to their preferred typing angles. This flexibility allows for a more comfortable and natural typing posture, reducing strain on wrists and forearms during extended gaming sessions or prolonged work periods.

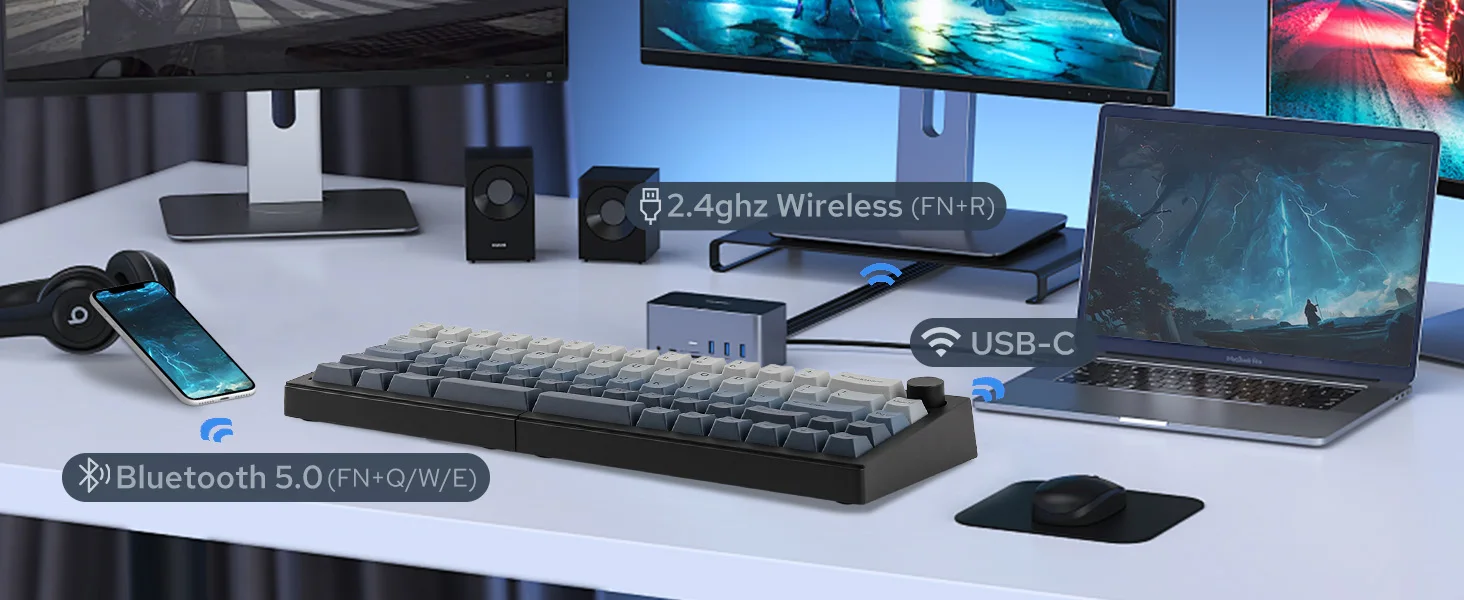

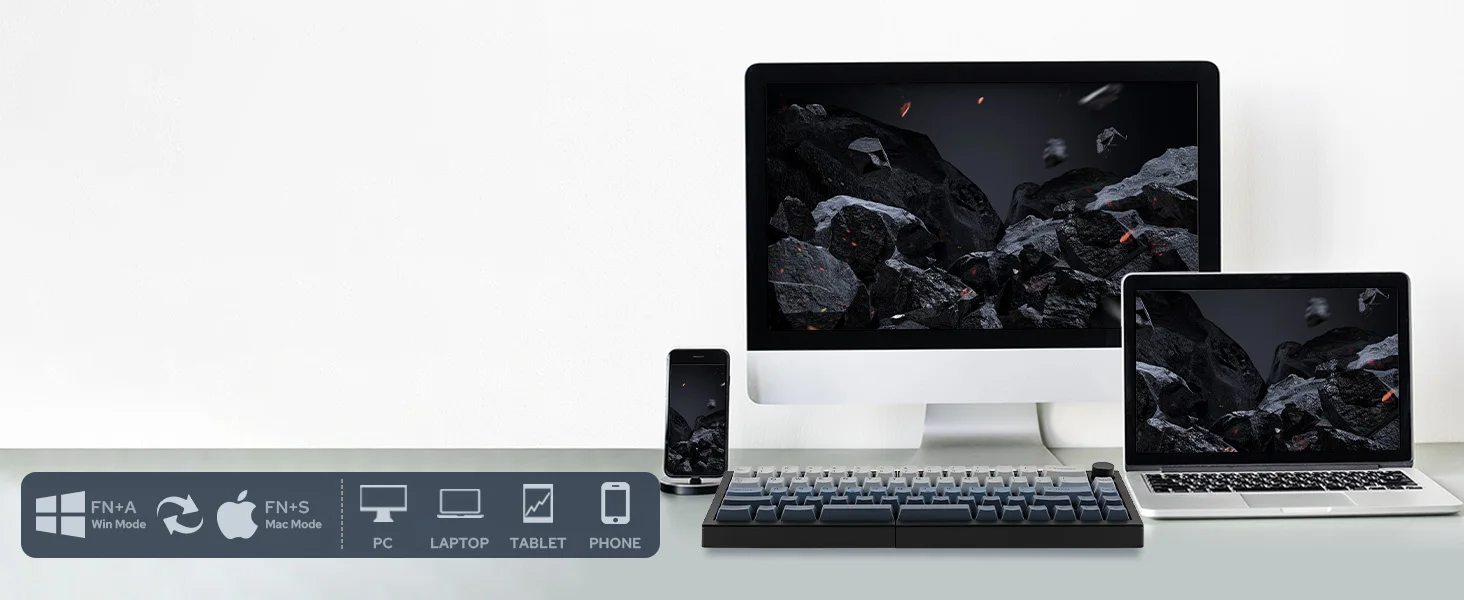

Triple Modes Connectivity

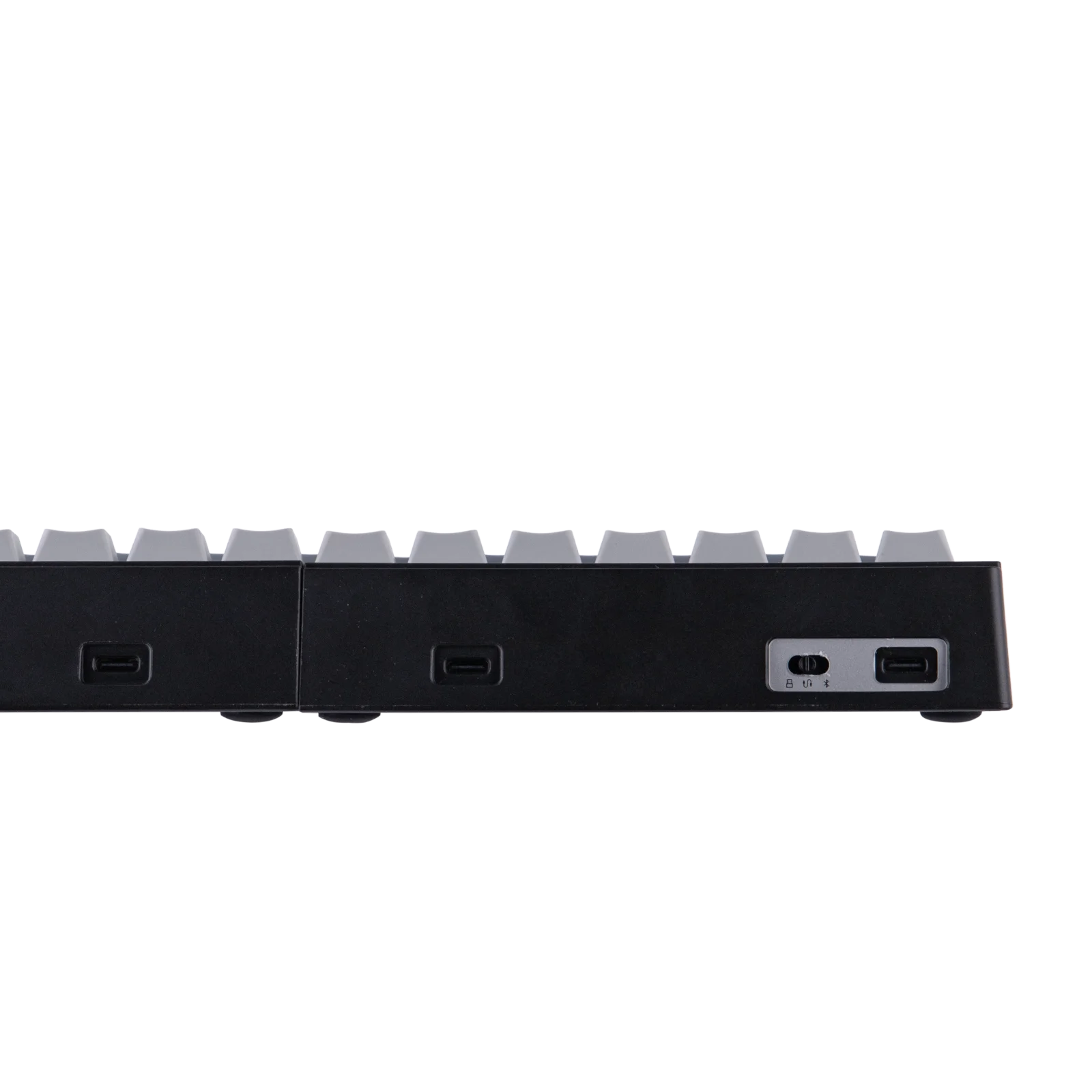

Offering versatile connectivity options, the Epomaker Split65 is equipped with Type-C wired, Bluetooth 5.0, and 2.4GHz wireless modes. This triple connectivity ensures seamless integration with multiple devices, enhancing workflow and gaming setups by allowing quick switches between different systems without the need for re-pairing or multiple keyboards.

4 Layer Sound Dampening Material

To ensure a quieter typing experience, the Split65 incorporates a four-layer sound dampening system. This system includes Poron Sandwich Foam, IXPE Switch Pad, Sound Enhancement Pad, and Poron Switch Socket Pad. Each layer contributes to reducing keystroke noise and enhancing the sound quality of each press for a satisfying acoustic profile.

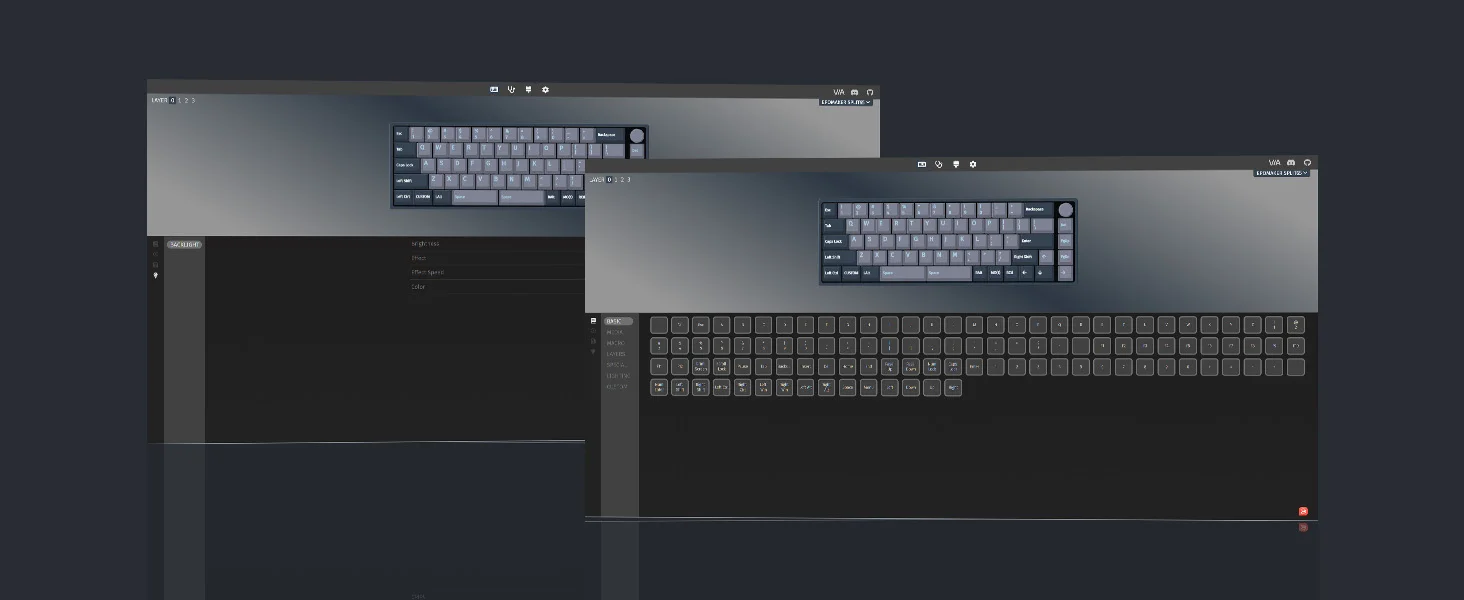

QMK/VIA Support

The Split65 supports QMK/VIA, powerful tool for keyboard customization. These software options allow users to program and map keys, set up complex macros, and adjust lighting options, providing a highly customizable user experience tailored to personal or professional needs.

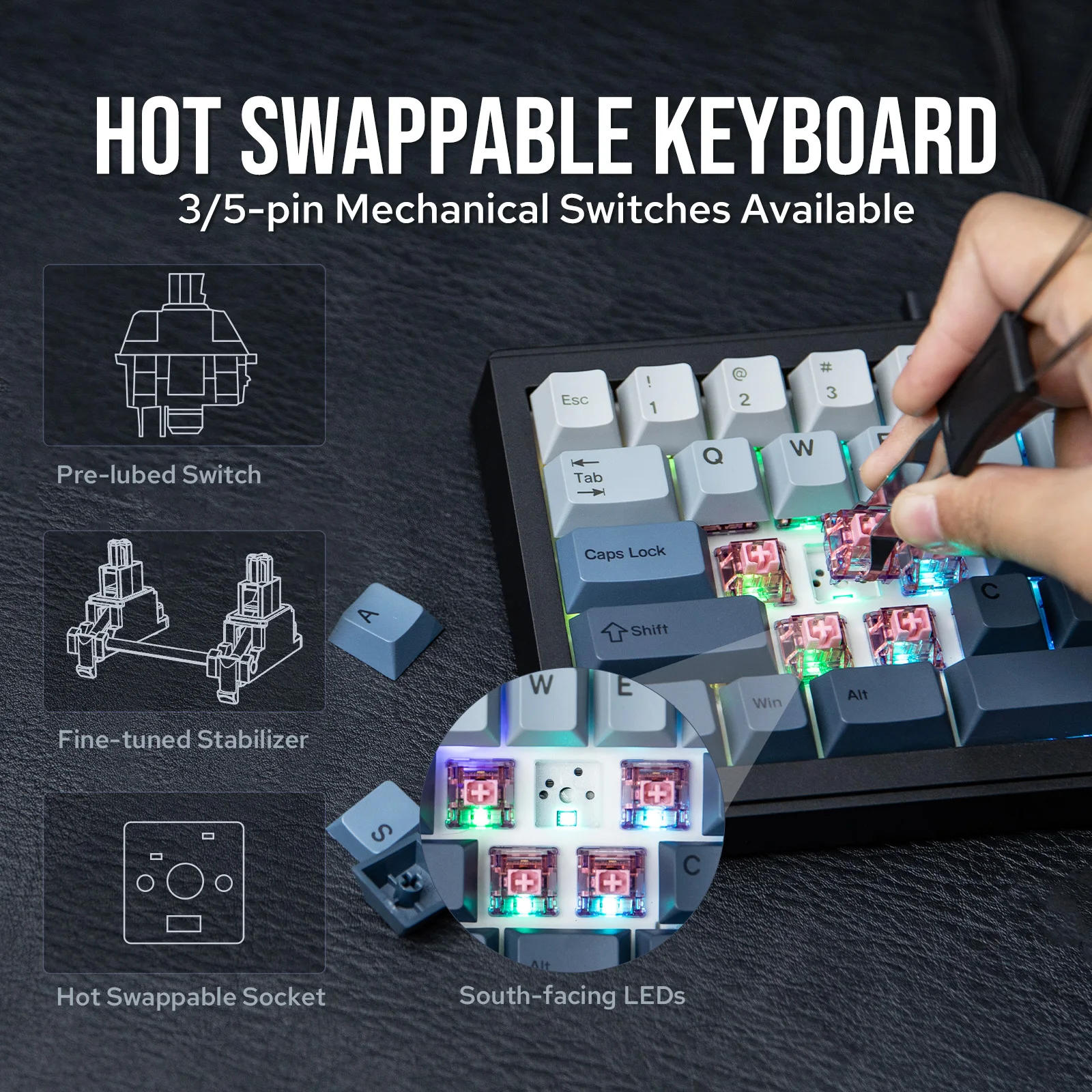

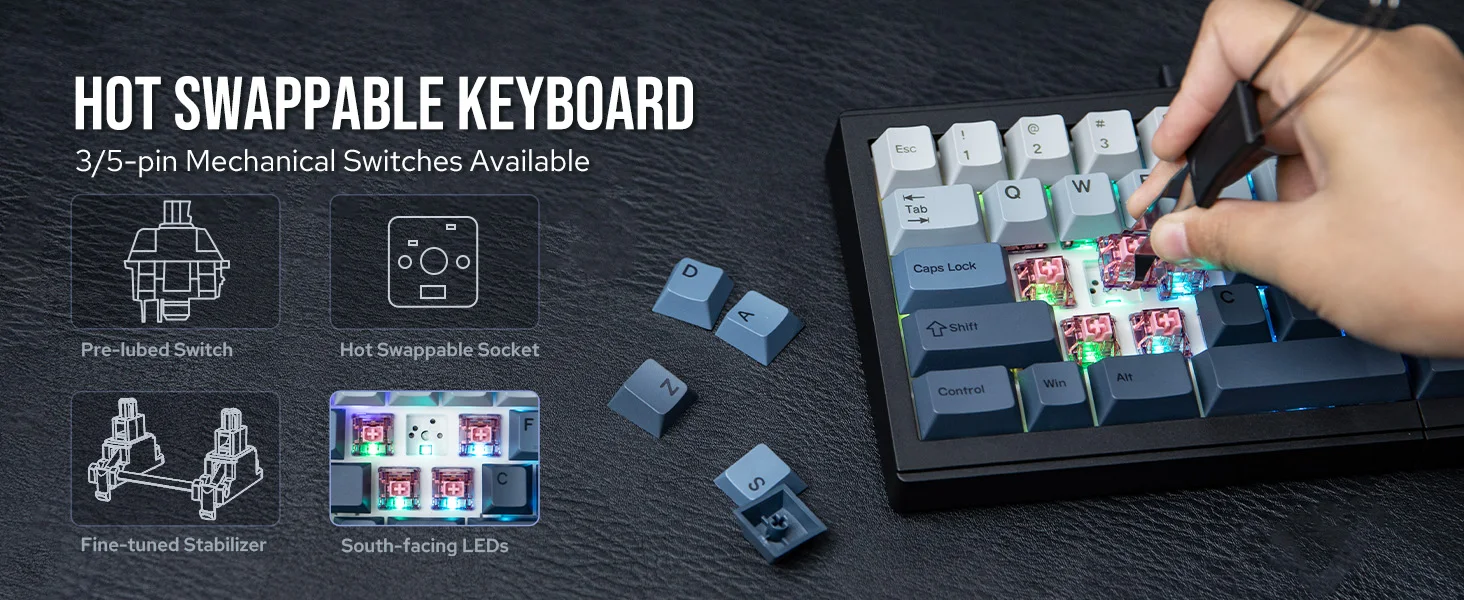

TOP Structure & Full-key Hotswappable

Featuring a TOP structure, the Split65 offers a soft, yet responsive typing feel with reduced vibrations. Additionally, the full-key hotswappability facilitates easy switch replacements or modifications without soldering, enabling users to experiment with different switch types to match their typing preferences.

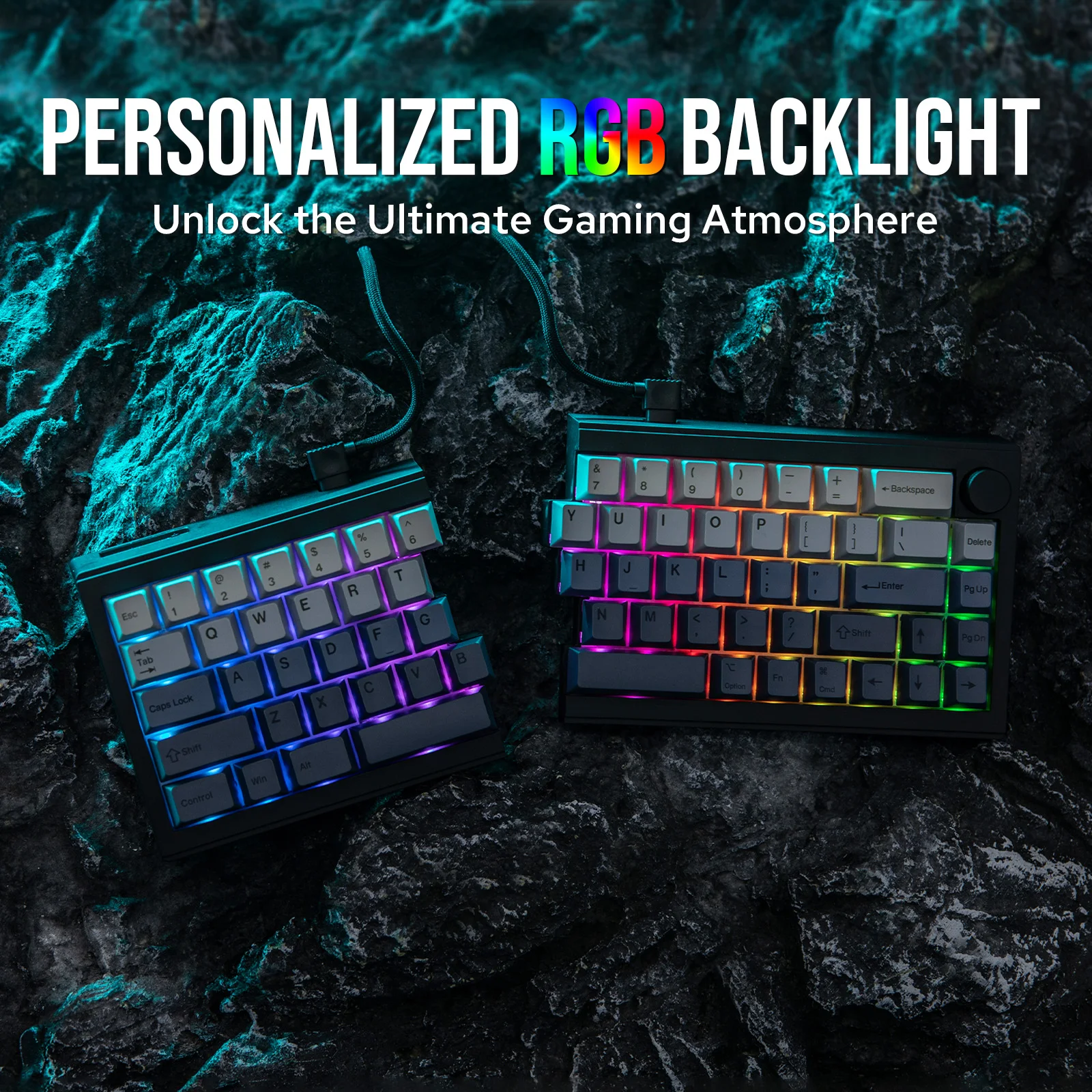

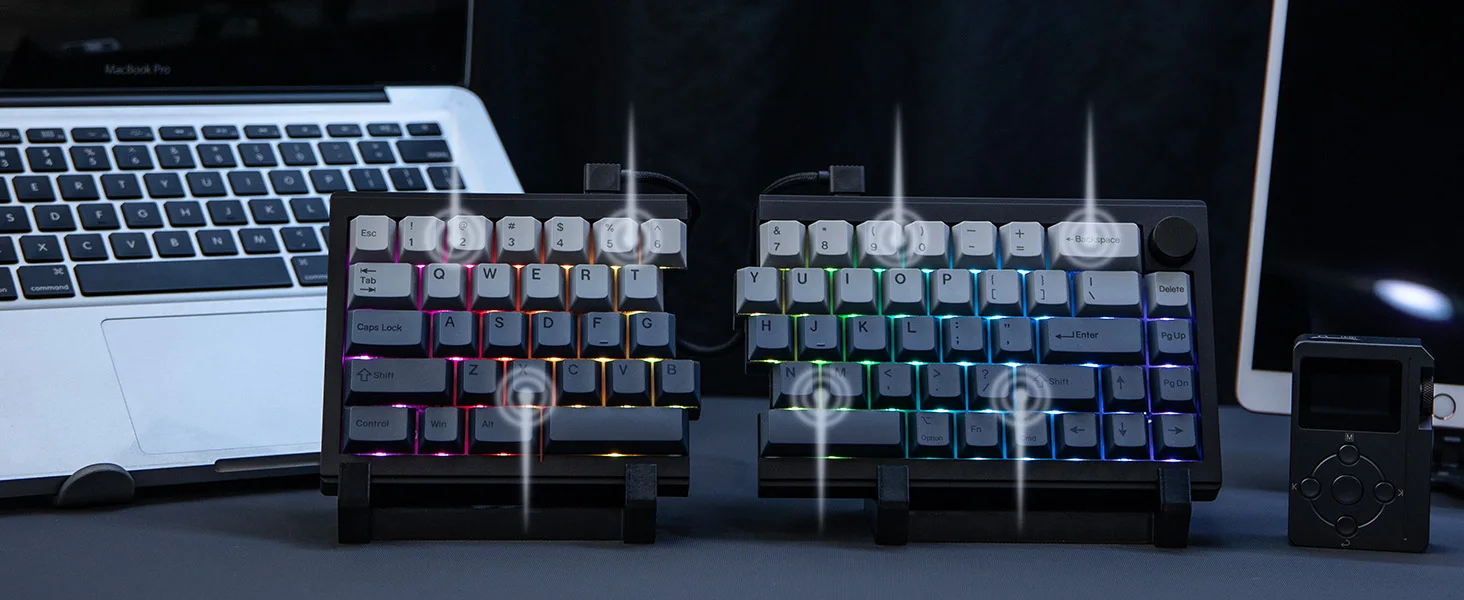

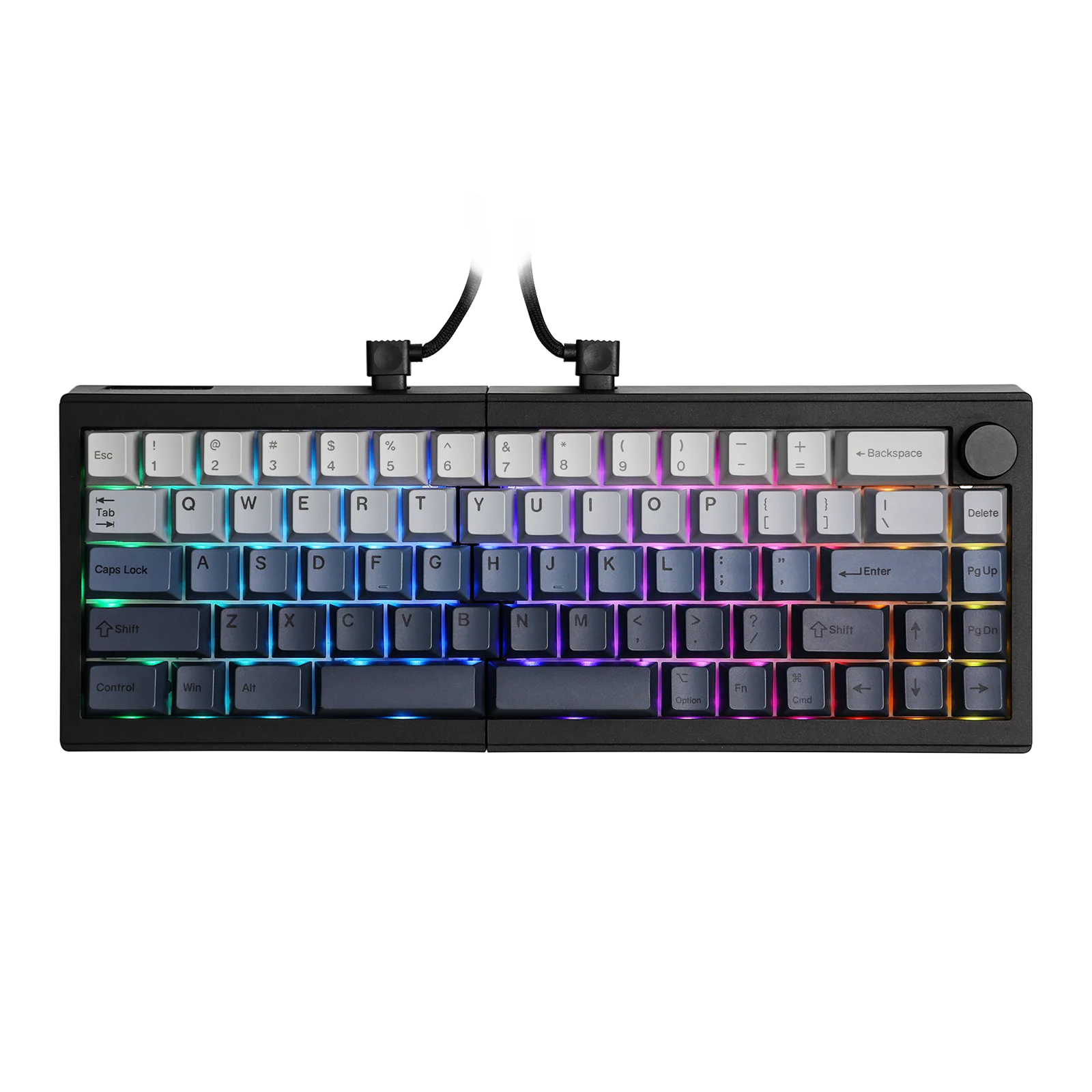

NKRO & South-facing RGB Backlight

The Split65 is equipped with NKRO (N-Key Rollover) to ensure that every keystroke is registered, even during intense gaming sessions. Combined with south-facing RGB LEDs, it provides consistent and unobstructed backlighting across all keys, enhancing visibility and aesthetics without the interference of switch shadows.

Specs:

Brand: EPOMAKER

Model: Split65

Layout: 60% ANSI US Layout

Number of Keys: 68 keys

Battery: 3000mAh

Connectivity: Cable Wired, 2.4GHz, Bluetooth 5.0

Compatibility: Mac/WIN/Android

Package Dimensions: 317*121*29MM

Keyboard Weight: Around 0.96kg

Front Height: 26.52MM

Back Height: 42.24MM

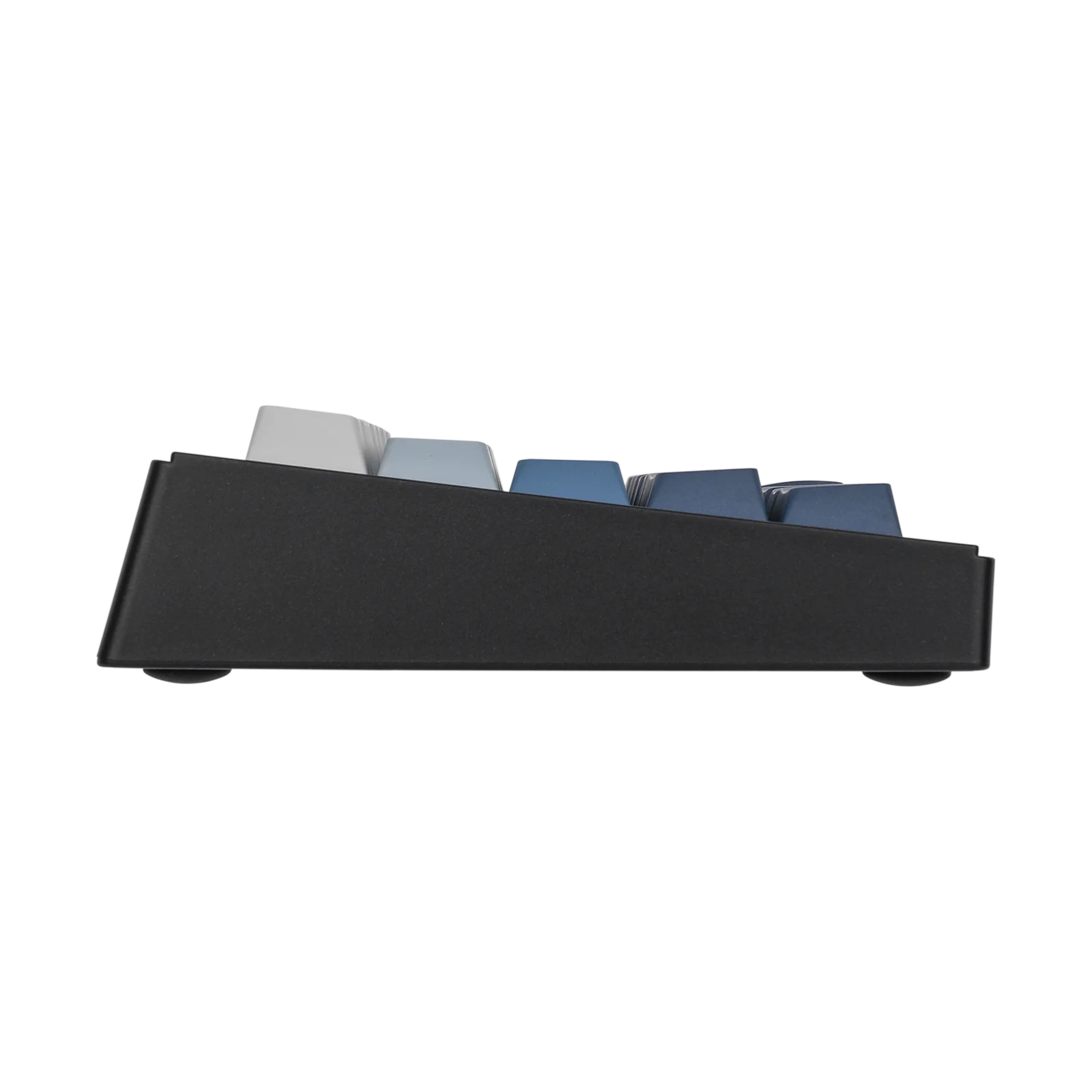

Typing Angle: 7 degree

Case Material: Top case ABS / Bottom case Iron

Plate Material: PC Plastic

Back weight Material: Iron

Back weight Finishing: Spray Paint

Flex-Cut: No

Stabilizers: Plate-Mount Stabilizer. (Not compatible with Screw-in Stabilizer)

Mounting Structure: Top-Mount

PCB Thickness: 1.6mm

PCB Material: FR4

Sound Dampening: 4 layers. (Poron Sandwich Foam, IXPE Switch Pad, Sound Enhancement Pad, Poron Switch Socket Pad)

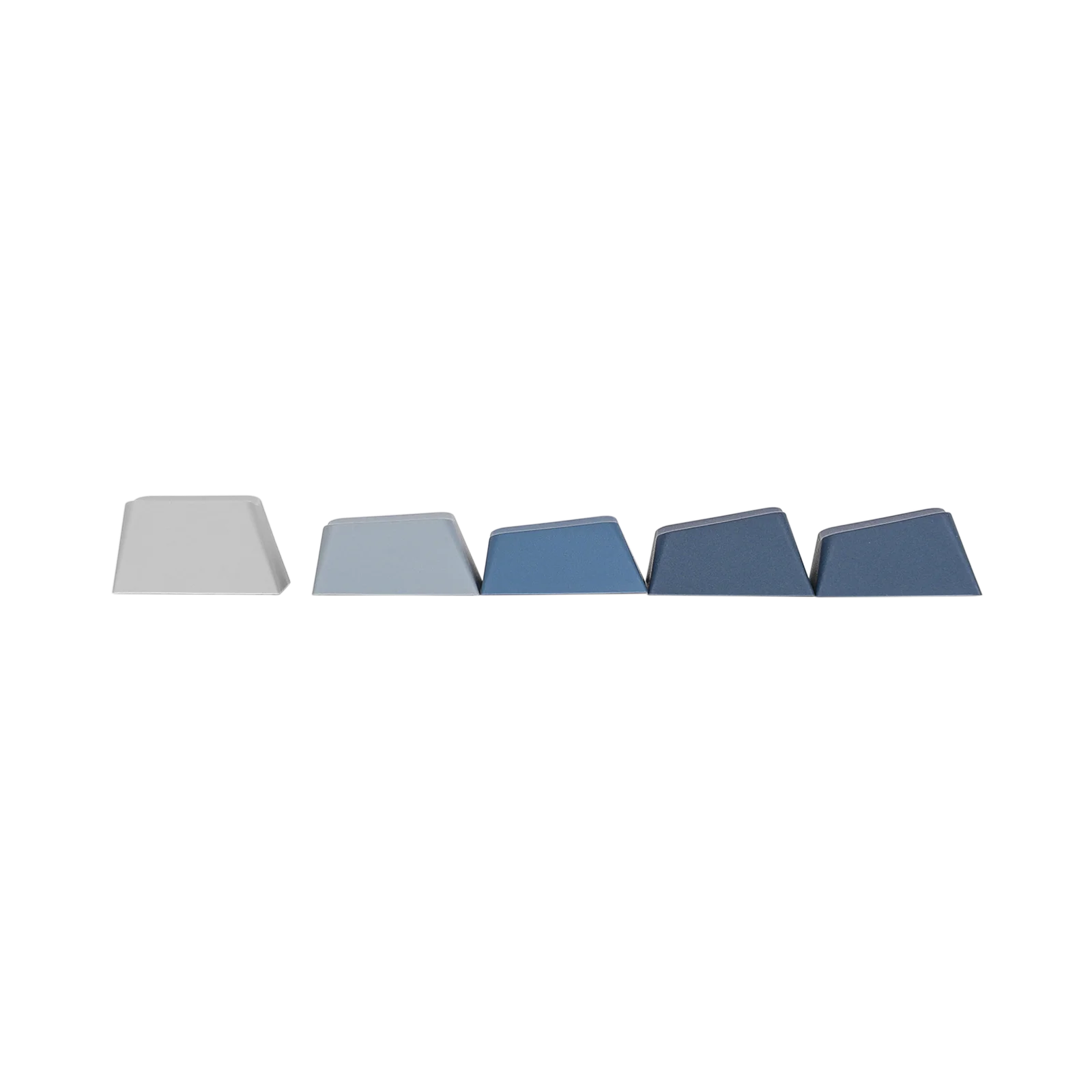

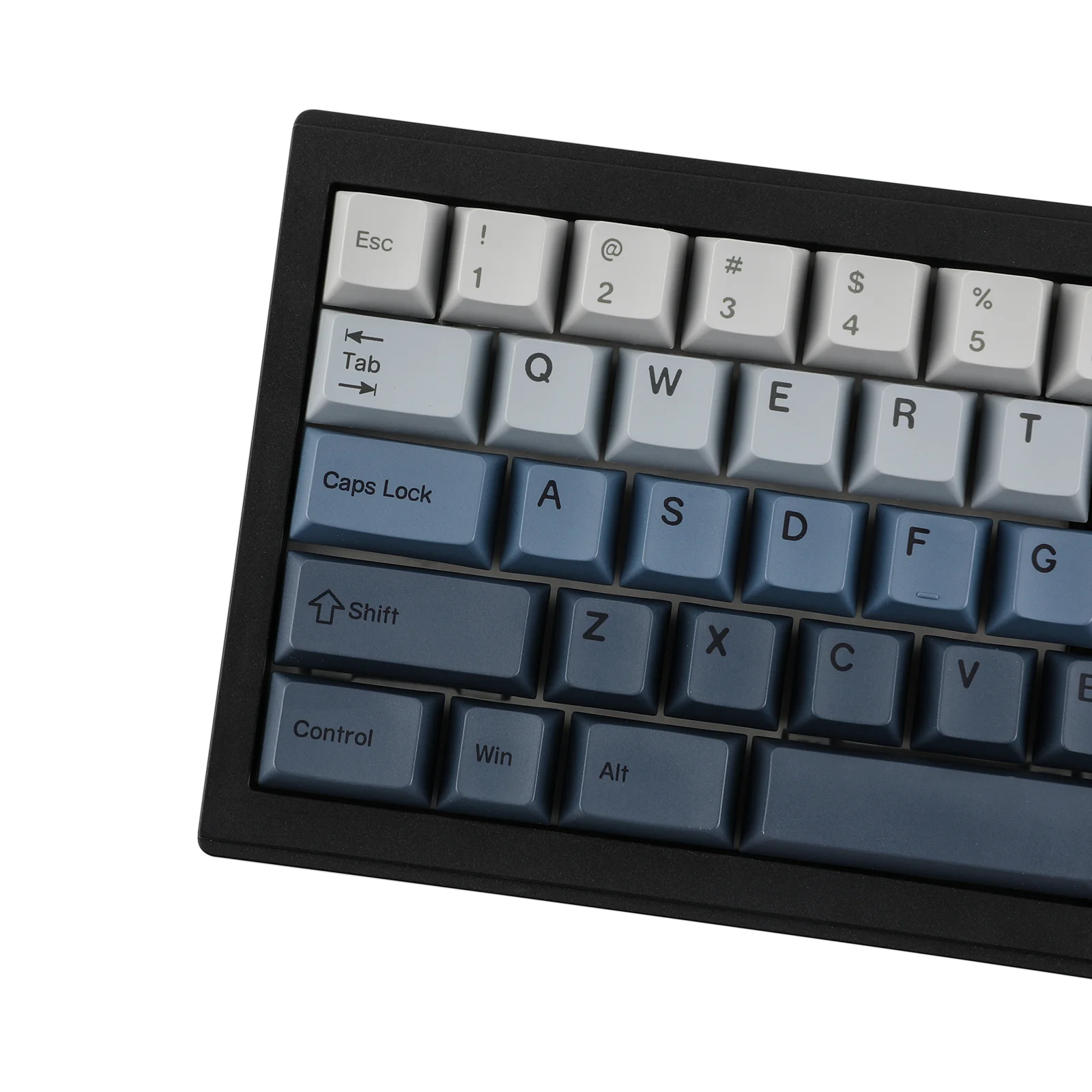

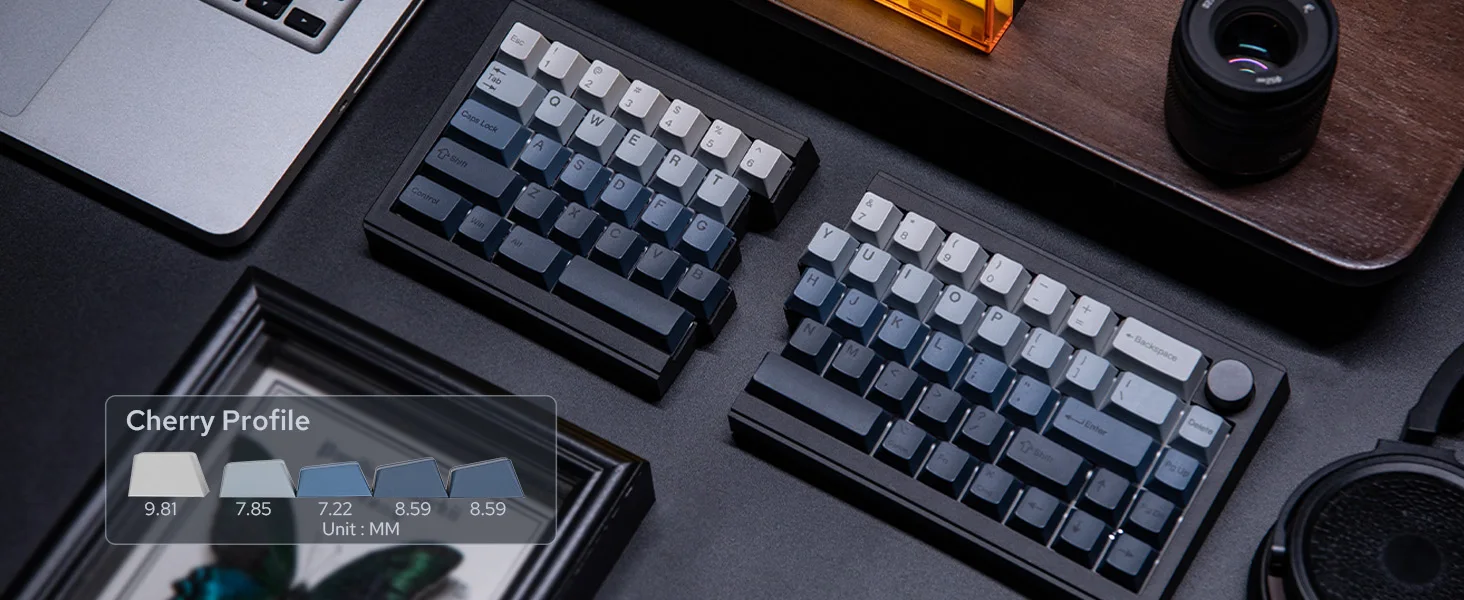

Keycaps Profile: Cherry Profile

Keycaps Material: PBT Plastic

Keycaps Manufacturing Technique: Dye-sublimation

Hot swappable: Yes, with 3/5-pin mechanical switches

RGB: South-facing, per-key RGB

Polling Rate: 1000Hz (USB, 2.4Ghz), 125Hz (Bluetooth 5.0)

Latency: 3ms (USB), 5ms (2.4Ghz wireless), 15ms (Bluetooth 5.0)

Anti-Ghosting: N-Key Rollover

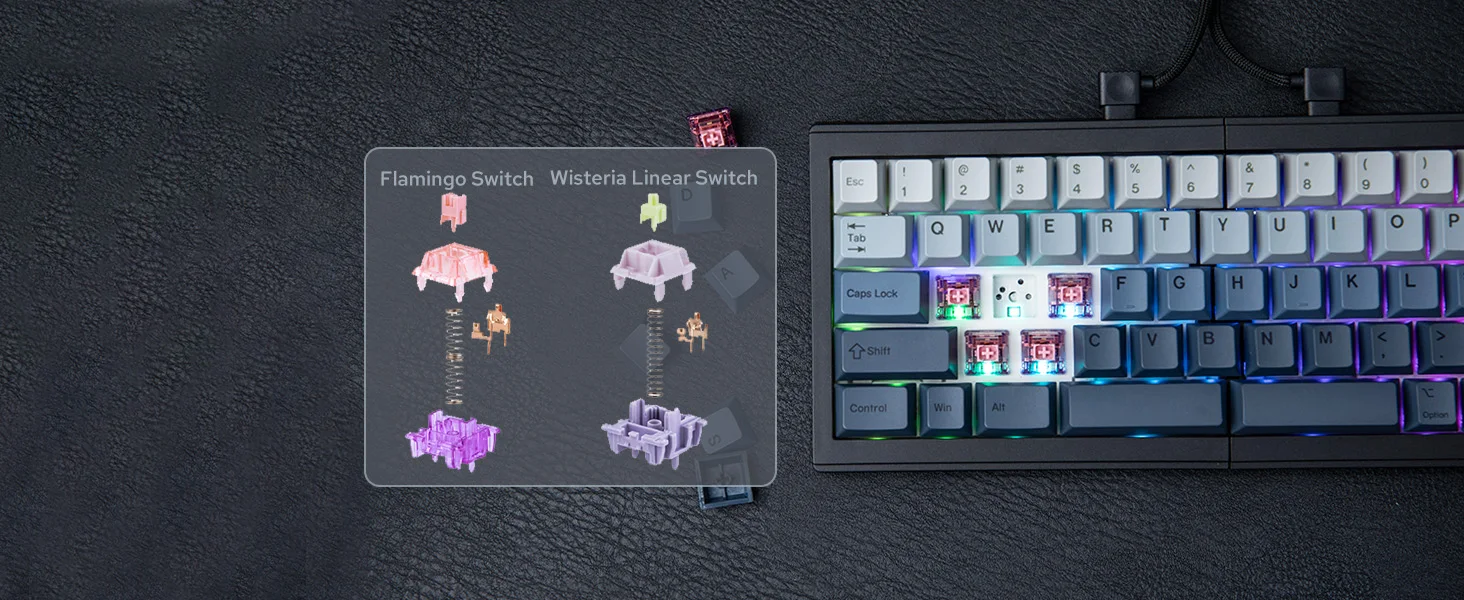

Specifications for EPOMAKER Flamingo Linear Switch:

Switch Name: EPOMAKER Flamingo Linear Switch

Switch Type: Linear

Pins: 5 Pins

Factory Lubed: Yes

Material: POM stem, PC housing, dual spring

Initial Force: 35gf min

Actuation Force: 47±5gf

Bottom-out Force: 60gf max

Actuation Travel: 1.50±2.00mm

Lifespan: 100 Million of Stokes

Specifications for EPOMAKER Wisteria Linear Switch V1:

Switch Name: Epomaker Wisteria V1 Switch

Switch Type: 5-pin Linear, Factory Lubed

Trigger Force: 45±3 gf

Bottom-out Force: 62±5 gf

Pre-Travel: 2.0±0.3mm

Total Travel: 3.6±0.3mm

Material: POM & PTFE (Stem), PC (Top Case), PA66 (Bottom Case)

Lifespan: 5,000,000

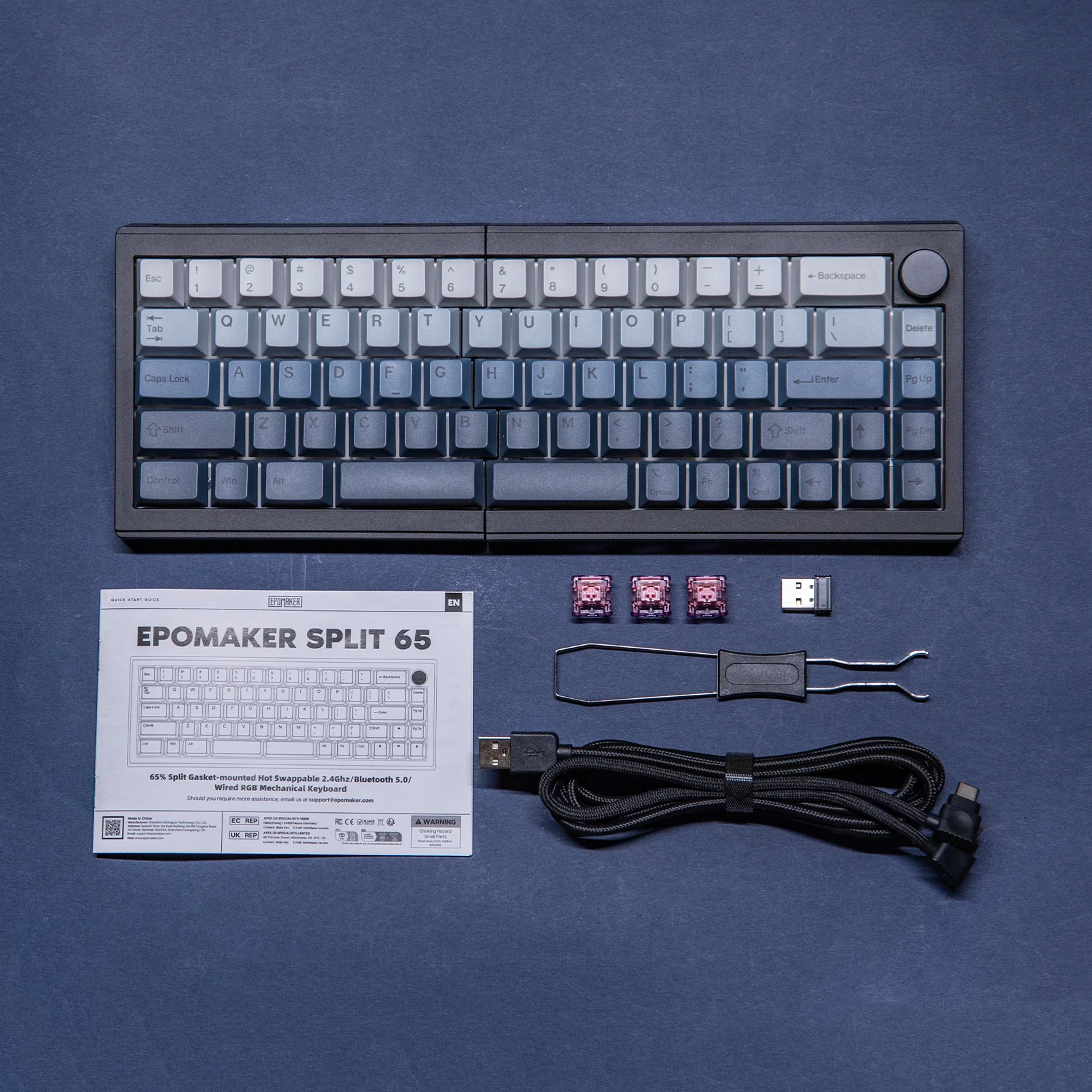

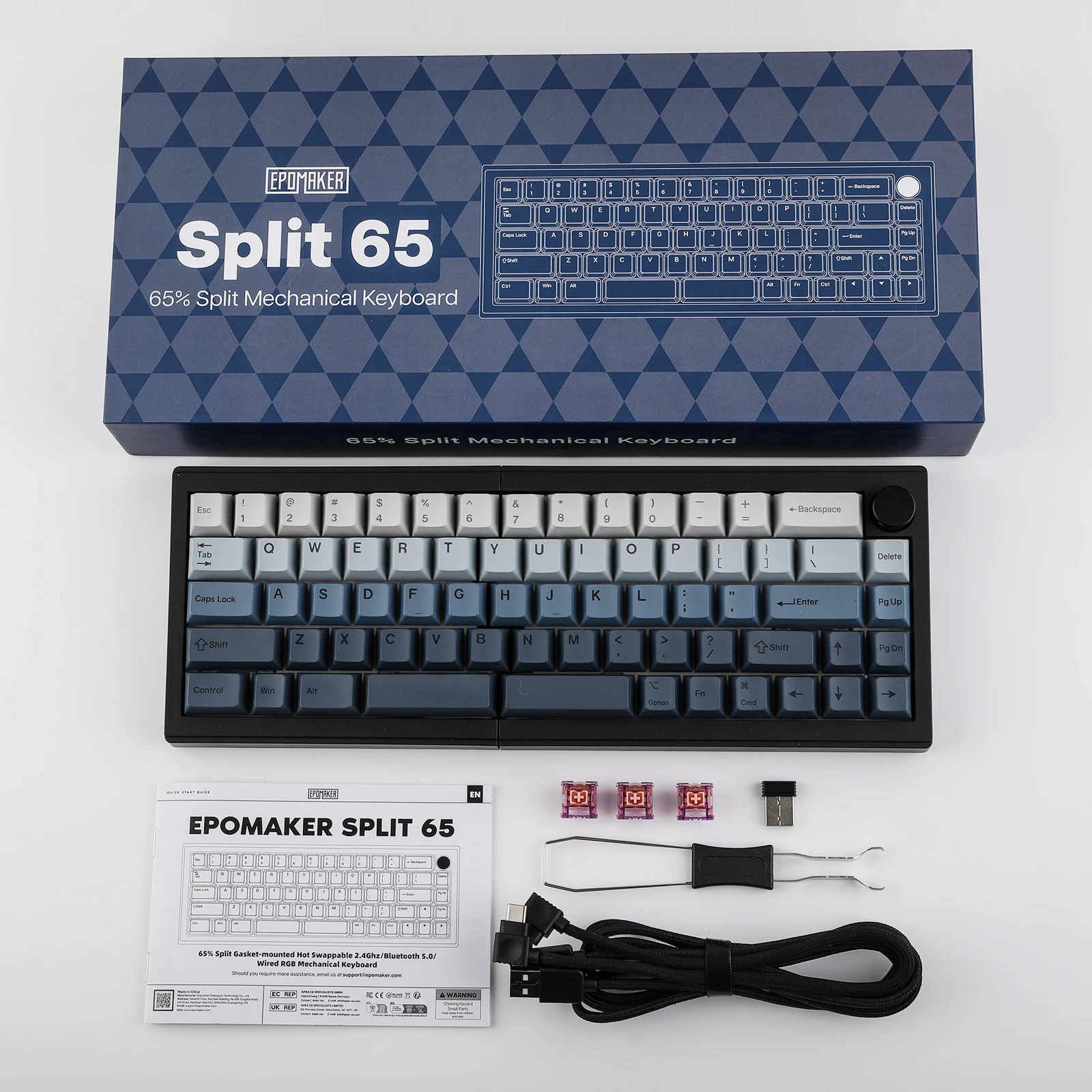

Inside the Box:

-Keyboard

-USB Cable

-User Manual

-Keycap Puller
