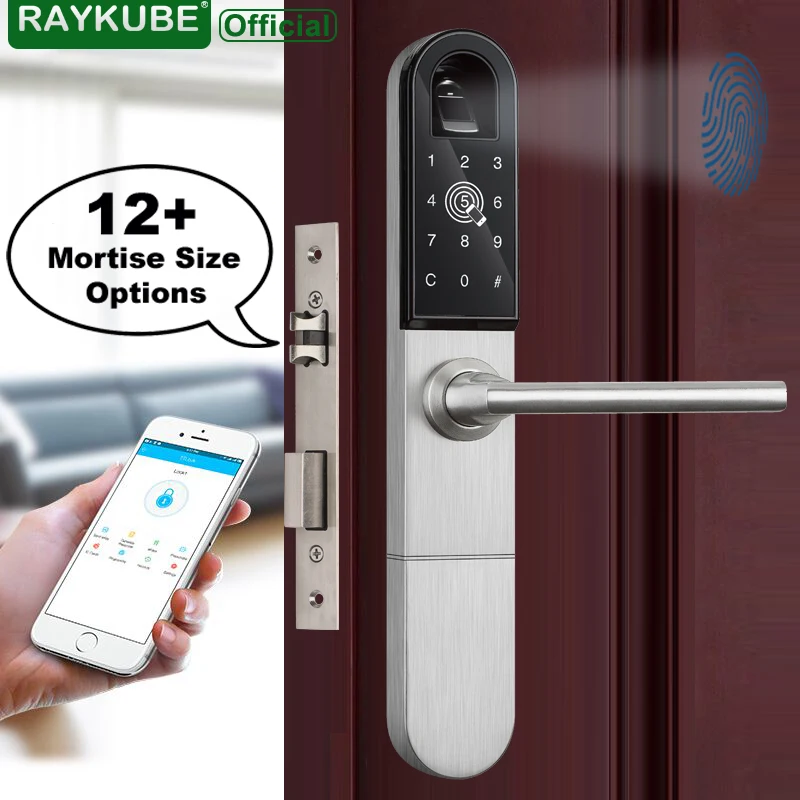

RAYKUBE Electronic Door Lock With Fingerprint / Smart Card / Bluetooth Unlock Wifi TT lock Phone APP Keyless Mortise Lock R-F918

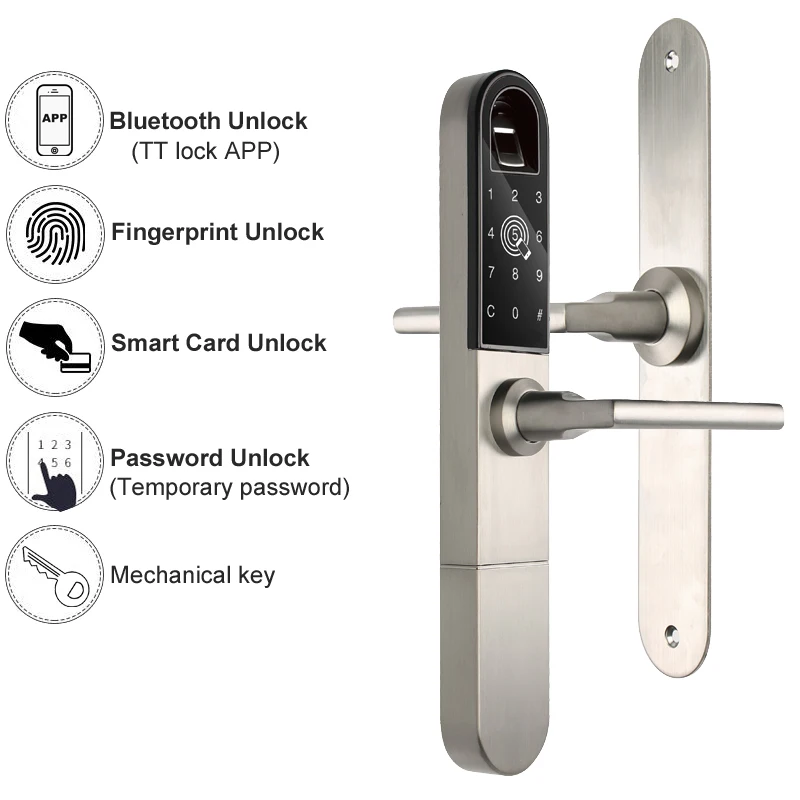

5 Unlock Method
Can work with “TT lock” Wifi Getway
Different Size Mortise Lock for Choose
Suitable Door Thickness is 35-65mm

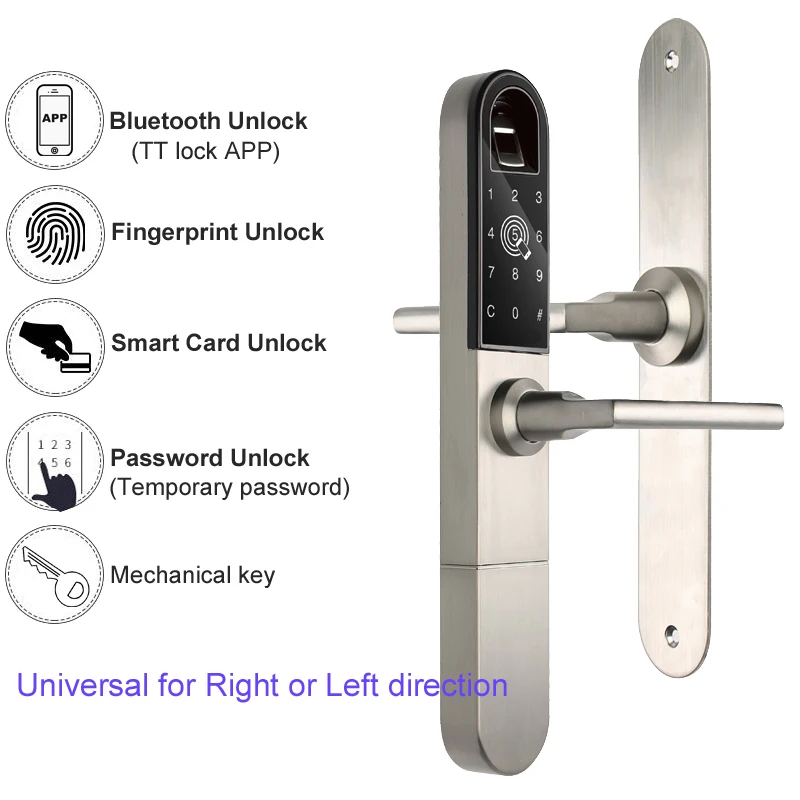

Universal for Right or Left Dirction

Specifications:

Brand: RAYKUBE
Model: R-F918
Material: Zinc Alloy
Unlock mode: Fingerprint +Password+Smart card + Key+App
(Password+Smart card + Key+App)
Fingerprint read: FPC Sensor (Semiconductor Sensor)
Color: Silver/Black/Red Bronze
Card User: 100
Fingerprint User: 200
Chip Type: Dual Core Driver
Read time: 0.3seconds
Touch screen: IML Material
Working power: 4 x AA batteries (not include)
Operating temperature: -25 to 55 Centigrade
Password function: support virtual password
Suit for the door thickness about 40 -100mm

Features:

1.Support APP unlock(only manager),Bluetooth Signal communication, distance within 10M
2.APP make temporary password,password and RFID cards manage.
3.Supprot smart lock collective one-click management,facilitate homeowner management of the room.
4.Support fingerprint,password,RFID card,mechanical key unlock,make your home smarter.

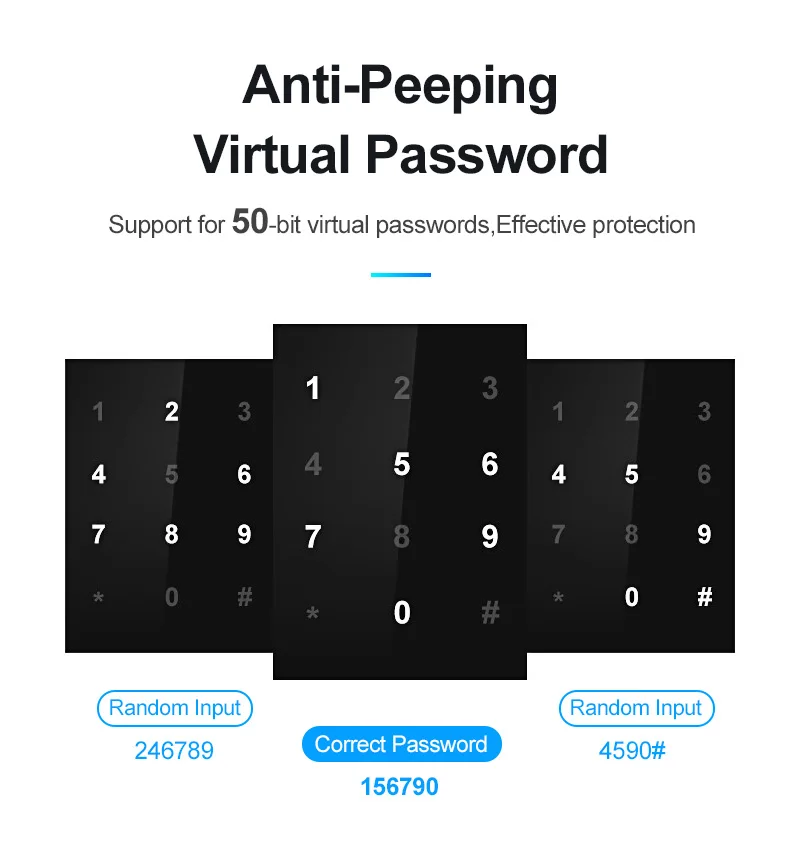

5.Anti-peeping function,Better Privacy Protection.
6.Low Battery Alarm function:When the battery is running out,it will automatically issue “didi”prompt tone.
7.Overlength standby,standby times up to 365days (Power supply:4 pcs AA batteries(Not included).
8.Equipped with USB emergency charging port.

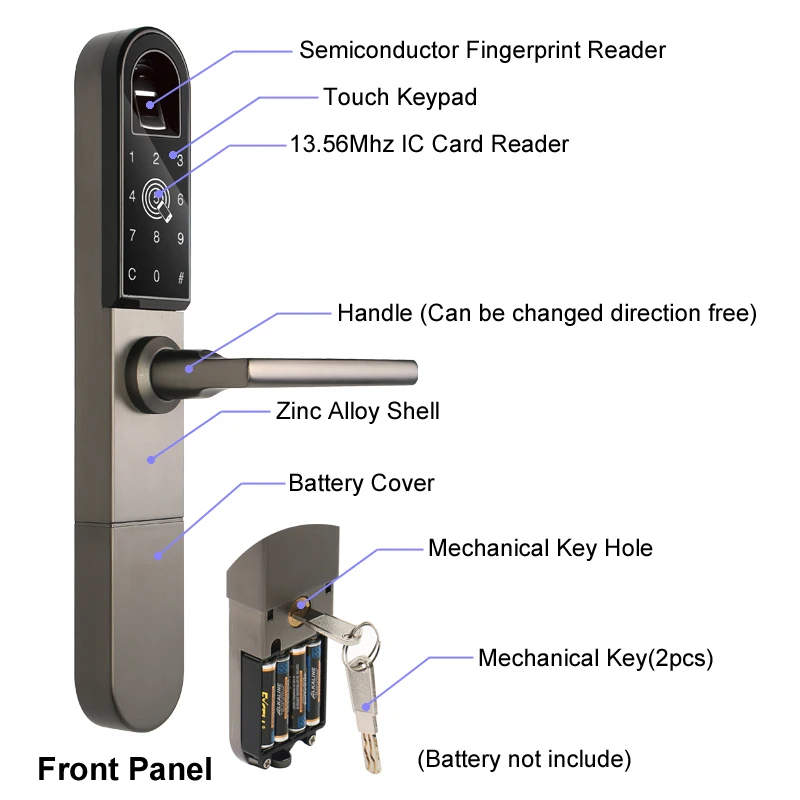

Semiconductor Fingerprint Reader:

Max support 200pcs fingerprint

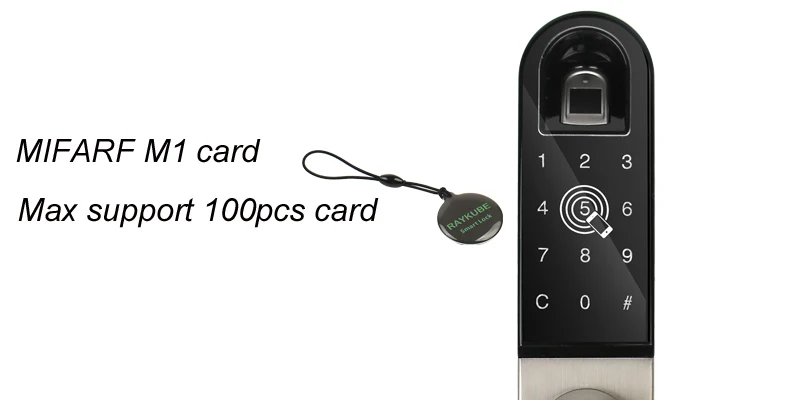

13.56Mhz Card Reader:

Max support 100pcs card

Touch Keypad:

You can make the Temporary password to the guest open lock in the APP.

The Temporary password include “Limited time”and “one time”

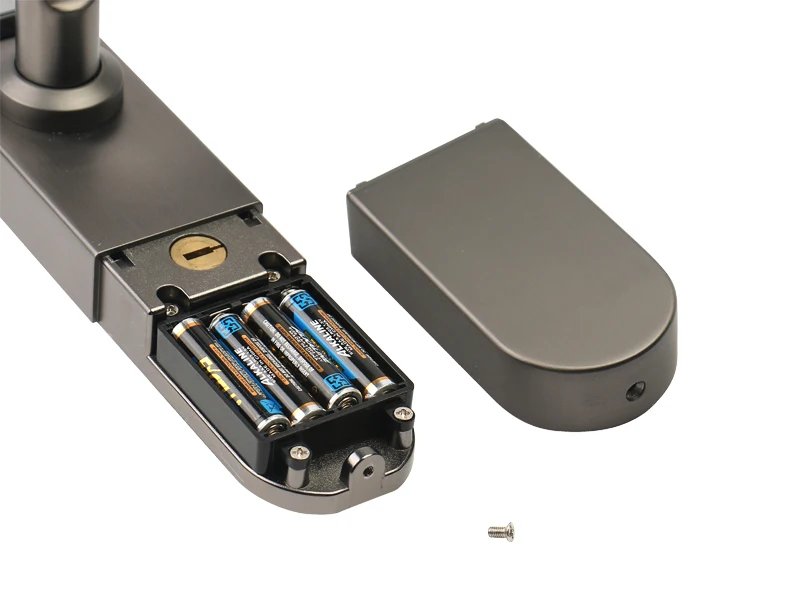

Unscrew the screw open battery cover, you can see the battery enclosure and key hole.

Now is the most important things about the Installtion

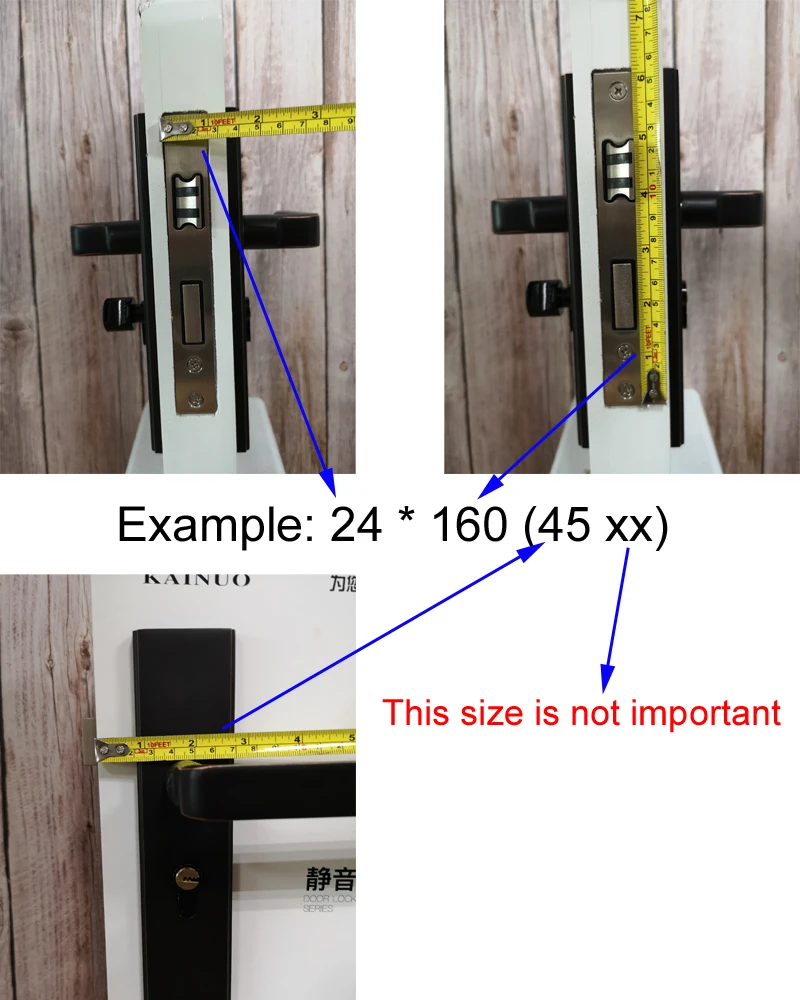

Measure the old mortise lock:
please select our size follow your Original lock size,that you would replace new lock very easy.

We have 13 different sizes mortise lock for choose

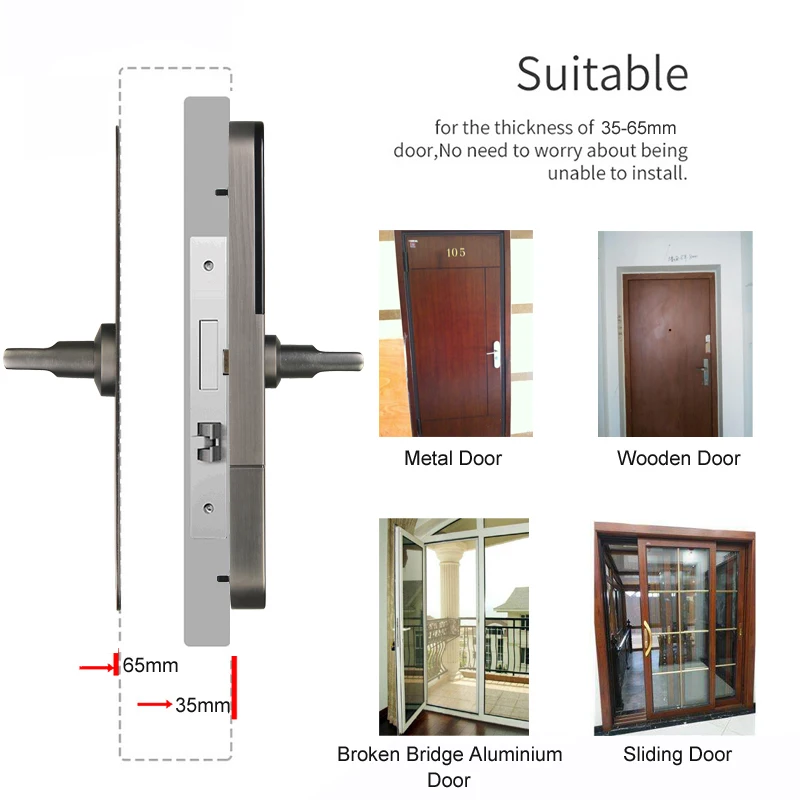

Measure the door thickness: (35-65mm is suitable)

If your door thickness is over 66mm, please contact us.

For Metal door / Wooden door / Sliding door / Broken bridge aluminum door

Replace perfectly for those two types original lock.

Very easy to upgraded a Smart Door Lock From us.

About the “TT lock” APP:

Managed password / IC card / Fingerprint in APP

Make Permanent / one-time / limited time / Customized / Cyclic password in APP, very convenient for Office / Hotel and your guest

You can see all kinds of the Mortise Lock size here:

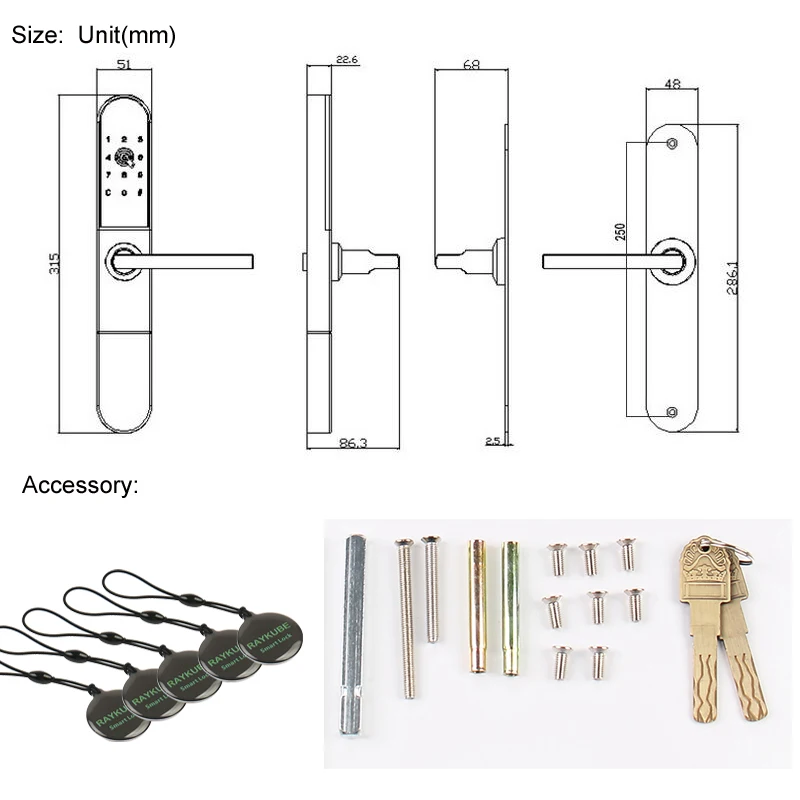

Package includes:
Front panel x 1
Rear panel x 1
Mortise lock x 1
Smart card x 5
Mechanical Key x 2
Screw Kit x 1
